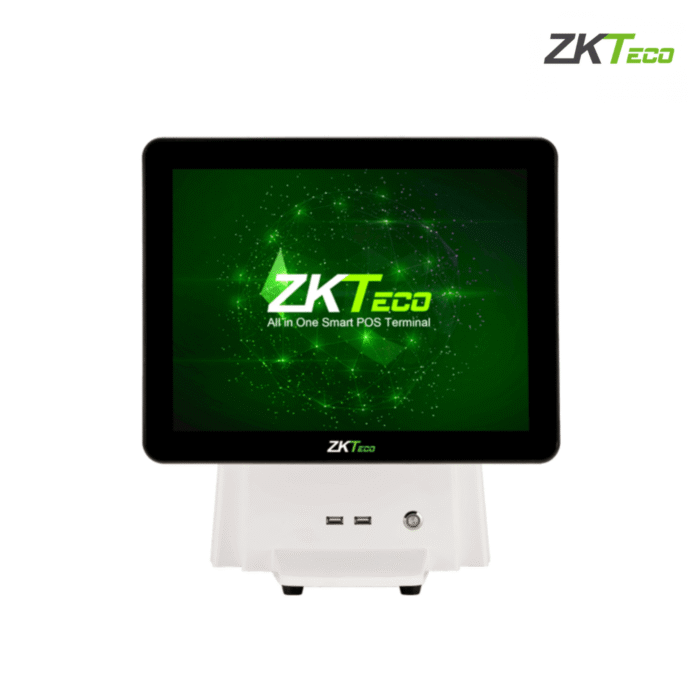

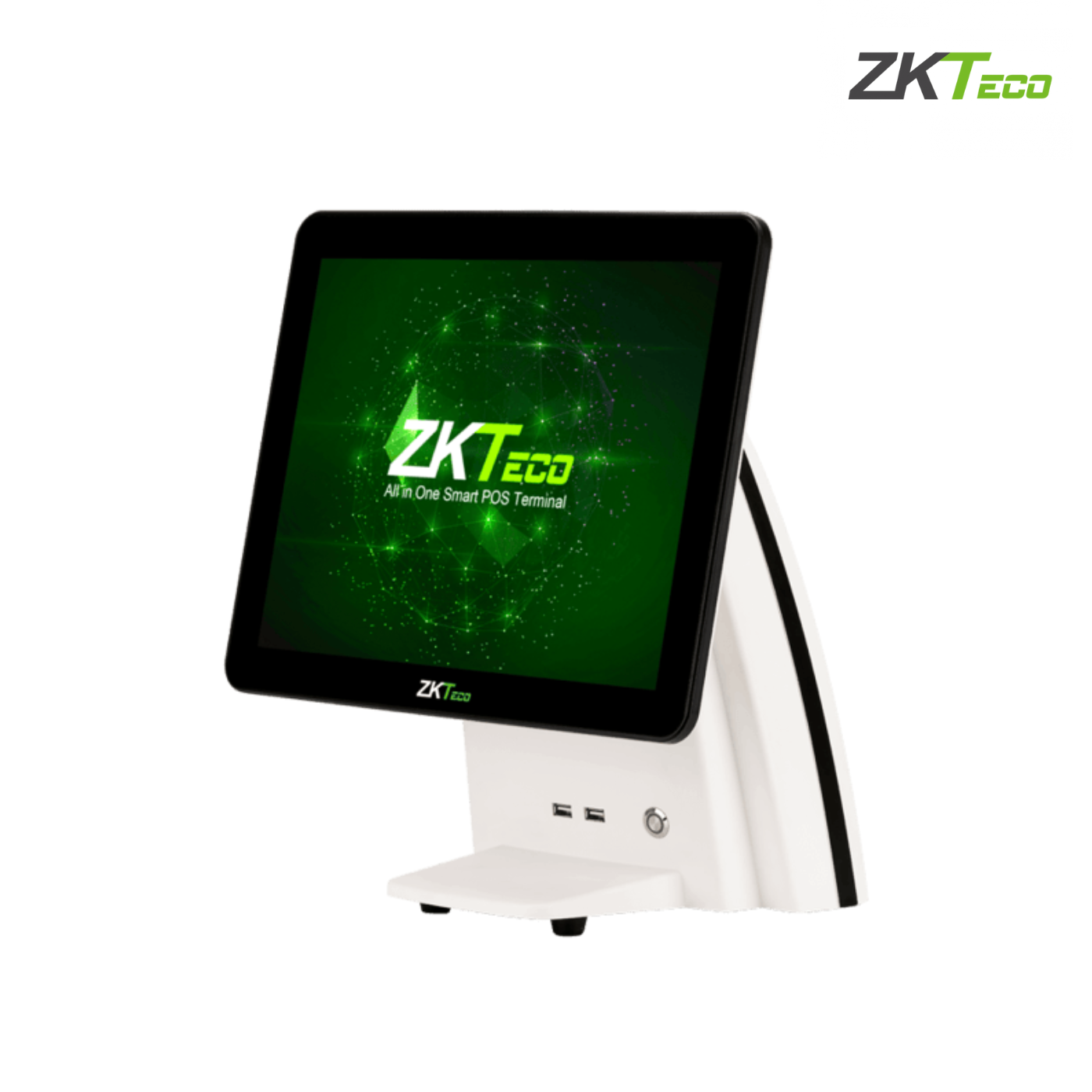

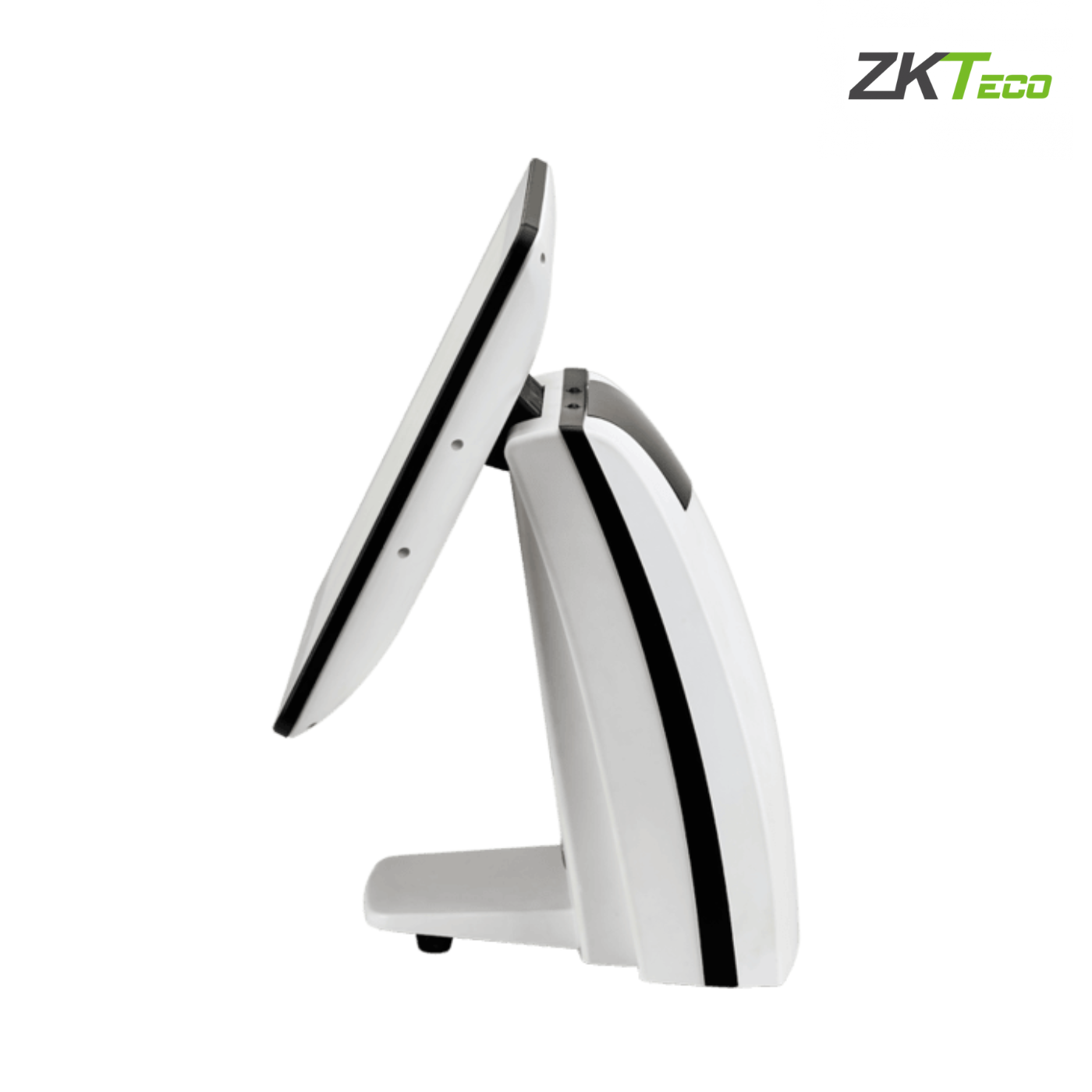

ZKTeco ZKBio1550 POS Touchscreen Terminal

Overview
Powered by Intel® Core™ i5-4200U Processor
15” Capacitive Touchscreen with LED Backlight
Multiple Connectivity Ports for Maximum Expandability
Supports Windows & Linux Operating Systems
Ideal for Retail, Hospitality, and Business Applications

System Specifications

Processor: Intel® Core™ i5-4200U @ 1.6GHz

Memory & Storage:

Standard Memory: 2GB DDR3L 1333MHz
Expandable Memory: Up to 8GB
Standard Storage: 32GB SSD
Optional Storage: Supports 1 × 2.5” HDD & 2.5” SSD
Operating System Support: Windows 7, 8, 10 IoT Enterprise, POS Ready 7, Linux
Audio: Realtek ALC662 Audio Codec

Display & Touch Features
Main Display: 15” TFT LCD, LED Backlight
Resolution: 1024×768
Touchscreen: Projected Capacitive Touch
Customer Display Options:

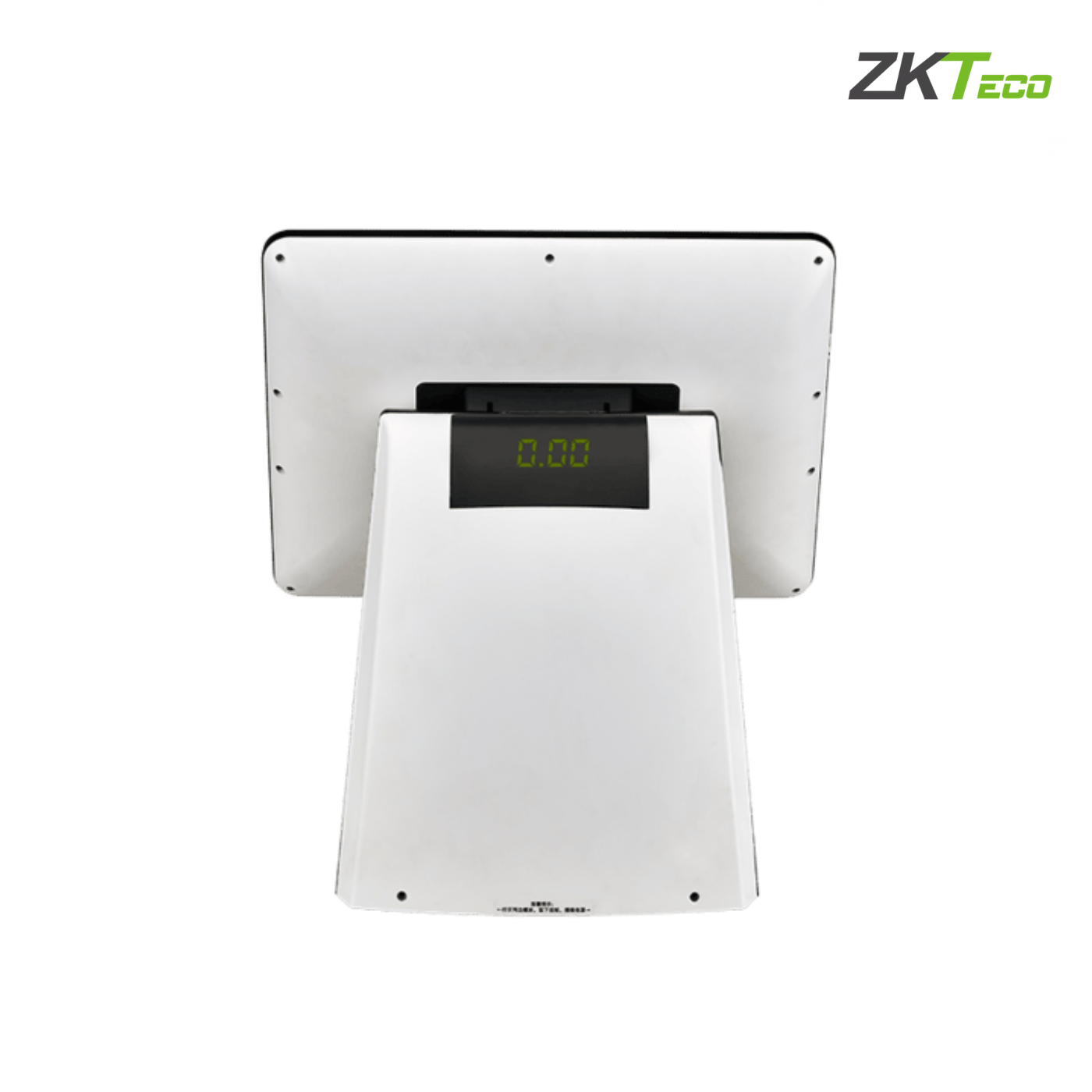

Standard: LED (8C Digital Tube)
Optional: 15” TFT LCD or 20 Columns × 2 Lines VFD Display

External I/O Ports

USB Ports: 4 × USB 2.0, 2 × USB 3.0
Serial Ports (RS232): 3
LAN: 1 × RJ45
VGA: 1 × DB-15
HDMI: 1
Audio: 1 × Line-out

Power & Environmental Conditions
Power Supply:

12V DC / 5A Adapter
